Lab05 Visualizing Federal Housing Price Trends Using Shiny

0.1 Federal Housing Finance Agency Housing Price Index (FHFA HPI)

“The FHFA HPI is a broad measure of the movement of single-family house prices. The FHFA HPI is a weighted, repeat-sales index, meaning that it measures average price changes in repeat sales or refinancings on the same properties. This information is obtained by reviewing repeat mortgage transactions on single-family properties whose mortgages have been purchased or securitized by Fannie Mae or Freddie Mac since January 1975” (FHFA)

0.2 Code used as initial reference point before building Shiny app

library(tidyverse)
# install.packages("openxlsx")
library(openxlsx)

hpi <- read.xlsx(xlsxFile = "https://github.com/aldenfelix/aldenfelix.github.io/raw/main/Data/HPI_PO_monthly_hist.xlsx",
                 startRow = 4,
                 detectDates = TRUE)
head(hpi)

       Month East.North.Central.(NSA) East.North.Central.(SA)
1 1991-01-01                   100.00                  100.00
2 1991-02-01                   100.91                  100.97
3 1991-03-01                   101.31                  100.92
4 1991-04-01                   101.70                  100.99
5 1991-05-01                   102.33                  101.37
6 1991-06-01                   102.78                  101.50
  East.South.Central.(NSA) East.South.Central.(SA) Middle.Atlantic.(NSA)
1                   100.00                  100.00                100.00
2                   101.02                  100.61                100.14
3                   100.87                  100.44                100.07
4                   100.81                  100.44                 99.59
5                   101.14                  100.74                 99.72
6                   102.00                  101.46                 99.86
  Middle.Atlantic.(SA) Mountain.(NSA) Mountain.(SA) New.England.(NSA)
1               100.00         100.00        100.00            100.00
2               100.36          98.43         98.80            101.71
3                99.82         100.26        100.67            101.48
4                99.29         100.32        100.40            100.96
5                99.25         100.71        100.51             99.70
6                98.98         102.08        101.56             99.09
  New.England.(SA) Pacific.(NSA) Pacific.(SA) South.Atlantic.(NSA)
1           100.00        100.00       100.00               100.00
2           102.22        100.12       100.53               100.59
3           101.28         99.94       100.10               101.02
4           100.95        100.15       100.12               100.91
5            99.74        100.31       100.07               100.78
6            98.58        100.43        99.89               101.31
  South.Atlantic.(SA) West.North.Central.(NSA) West.North.Central.(SA)
1              100.00                   100.00                  100.00
2              100.50                   100.47                  100.48
3              100.64                   100.38                  100.11
4              100.47                   100.80                  100.34
5              100.53                   100.74                  100.26
6              100.56                   101.39                  100.51
  West.South.Central.(NSA) West.South.Central.(SA) USA.(NSA) USA.(SA)
1                   100.00                  100.00    100.00   100.00
2                    99.86                   99.59    100.40   100.46
3                   100.64                  100.49    100.68   100.48
4                   100.38                  100.06    100.68   100.34
5                   100.80                  100.28    100.84   100.39
6                   101.98                  100.96    101.35   100.51

summary(hpi)

     Month            East.North.Central.(NSA) East.North.Central.(SA)
 Min.   :1991-01-01   Min.   :100.0            Min.   :100.0
 1st Qu.:1998-11-23   1st Qu.:141.4            1st Qu.:141.2
 Median :2006-10-16   Median :169.8            Median :168.5
 Mean   :2006-10-16   Mean   :172.2            Mean   :170.9
 3rd Qu.:2014-09-08   3rd Qu.:191.7            3rd Qu.:190.2
 Max.   :2022-08-01   Max.   :321.4            Max.   :315.0
 East.South.Central.(NSA) East.South.Central.(SA) Middle.Atlantic.(NSA)
 Min.   :100.0            Min.   :100.0           Min.   : 99.59
 1st Qu.:138.4            1st Qu.:138.0           1st Qu.:109.92
 Median :182.3            Median :180.8           Median :194.69
 Mean   :180.8            Mean   :179.7           Mean   :177.89
 3rd Qu.:200.7            3rd Qu.:199.1           3rd Qu.:214.54
 Max.   :377.3            Max.   :371.0           Max.   :345.90
 Middle.Atlantic.(SA) Mountain.(NSA)   Mountain.(SA)   New.England.(NSA)
 Min.   : 98.82       Min.   : 98.43   Min.   : 98.8   Min.   : 94.54
 1st Qu.:109.73       1st Qu.:154.47   1st Qu.:154.8   1st Qu.:114.20
 Median :194.15       Median :220.03   Median :219.1   Median :201.13
 Mean   :176.68       Mean   :236.95   Mean   :236.0   Mean   :187.24
 3rd Qu.:213.91       3rd Qu.:285.47   3rd Qu.:283.7   3rd Qu.:226.23
 Max.   :340.60       Max.   :604.91   Max.   :596.5   Max.   :383.37
 New.England.(SA) Pacific.(NSA)     Pacific.(SA)    South.Atlantic.(NSA)
 Min.   : 95.1    Min.   : 95.11   Min.   : 95.17   Min.   :100.0
 1st Qu.:114.1    1st Qu.:109.52   1st Qu.:109.62   1st Qu.:125.5
 Median :200.6    Median :186.65   Median :186.61   Median :186.0
 Mean   :186.0    Mean   :200.89   Mean   :200.14   Mean   :190.9
 3rd Qu.:225.9    3rd Qu.:266.23   3rd Qu.:264.60   3rd Qu.:233.3
 Max.   :376.7    Max.   :468.79   Max.   :462.48   Max.   :432.4
 South.Atlantic.(SA) West.North.Central.(NSA) West.North.Central.(SA)
 Min.   :100.0       Min.   :100.0            Min.   :100.0
 1st Qu.:125.2       1st Qu.:142.4            1st Qu.:142.3
 Median :185.7       Median :198.0            Median :196.0
 Mean   :189.5       Mean   :193.1            Mean   :191.8
 3rd Qu.:231.4       3rd Qu.:216.1            3rd Qu.:214.4
 Max.   :426.3       Max.   :380.1            Max.   :372.3
 West.South.Central.(NSA) West.South.Central.(SA)   USA.(NSA)
 Min.   : 99.86           Min.   : 99.59          Min.   :100.0
 1st Qu.:130.96           1st Qu.:130.69          1st Qu.:127.8
 Median :188.62           Median :188.66          Median :188.0
 Mean   :189.46           Mean   :188.29          Mean   :189.0
 3rd Qu.:223.25           3rd Qu.:221.44          3rd Qu.:222.4
 Max.   :415.36           Max.   :407.44          Max.   :404.3
    USA.(SA)
 Min.   :100.0
 1st Qu.:127.6
 Median :187.3
 Mean   :187.8
 3rd Qu.:221.8
 Max.   :397.1

# Select seasonally adjusted variables
# NOTE: TO INCLUDE PARENTHESES IN SEARCH USE \\ AS SEEN BELOW
sa_vars <- hpi %>%
  select(grep("\\(SA\\)|Month", colnames(hpi)))

# install.packages("reshape2")
library(reshape2)
# Turn data from wide to long format
sa_hpi <- melt(sa_vars, id.vars = "Month")

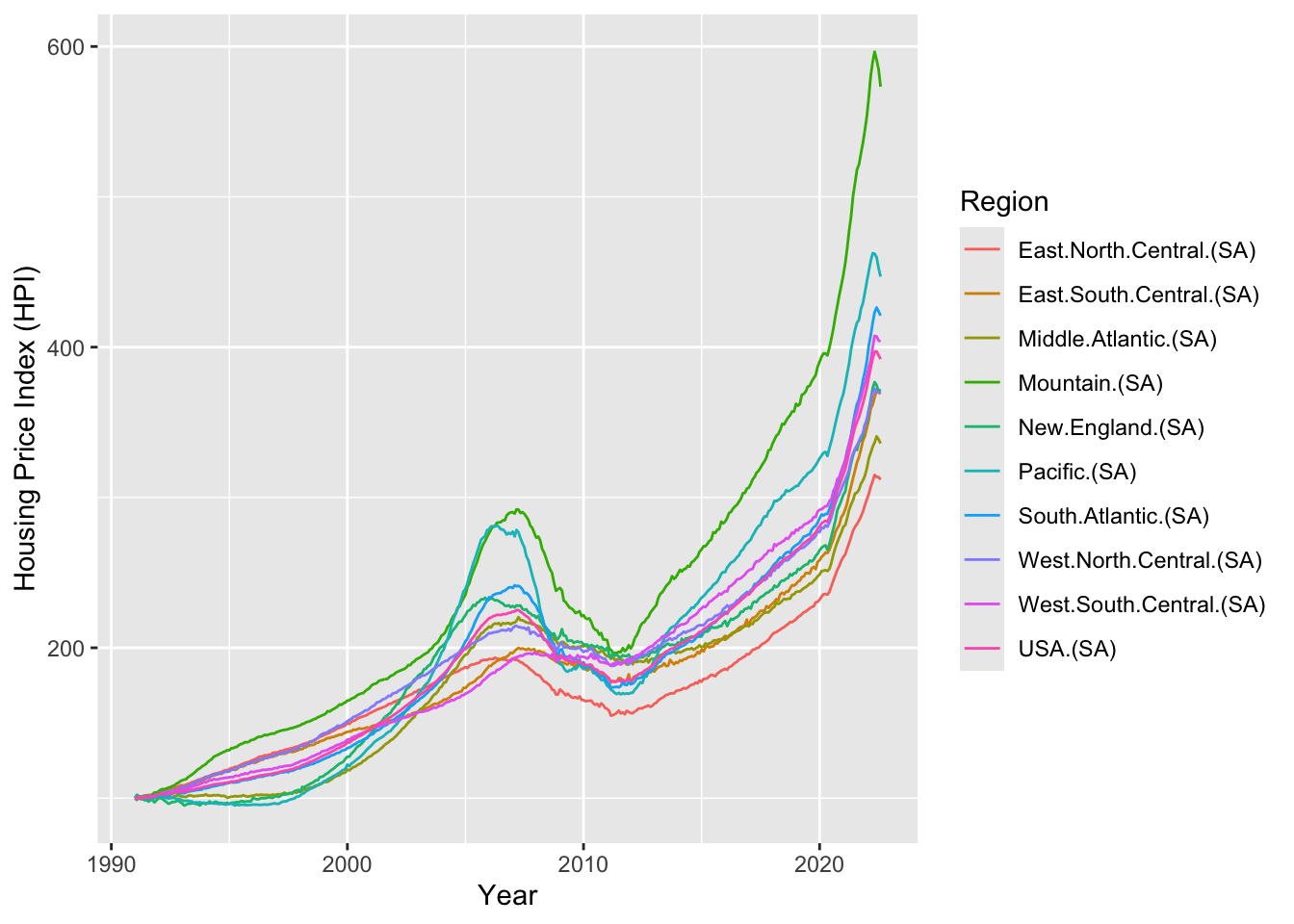

# All sa data
ggplot(sa_hpi, aes(x = Month, y = value,
                   group = variable,
                   color = variable)) +
  xlab("Year") + ylab("Housing Price Index (HPI)") +
  labs(color = "Region") +
  geom_line() +
  xlab("Year") + ylab("Housing Price Index (HPI)") +
  labs(color = "Region")

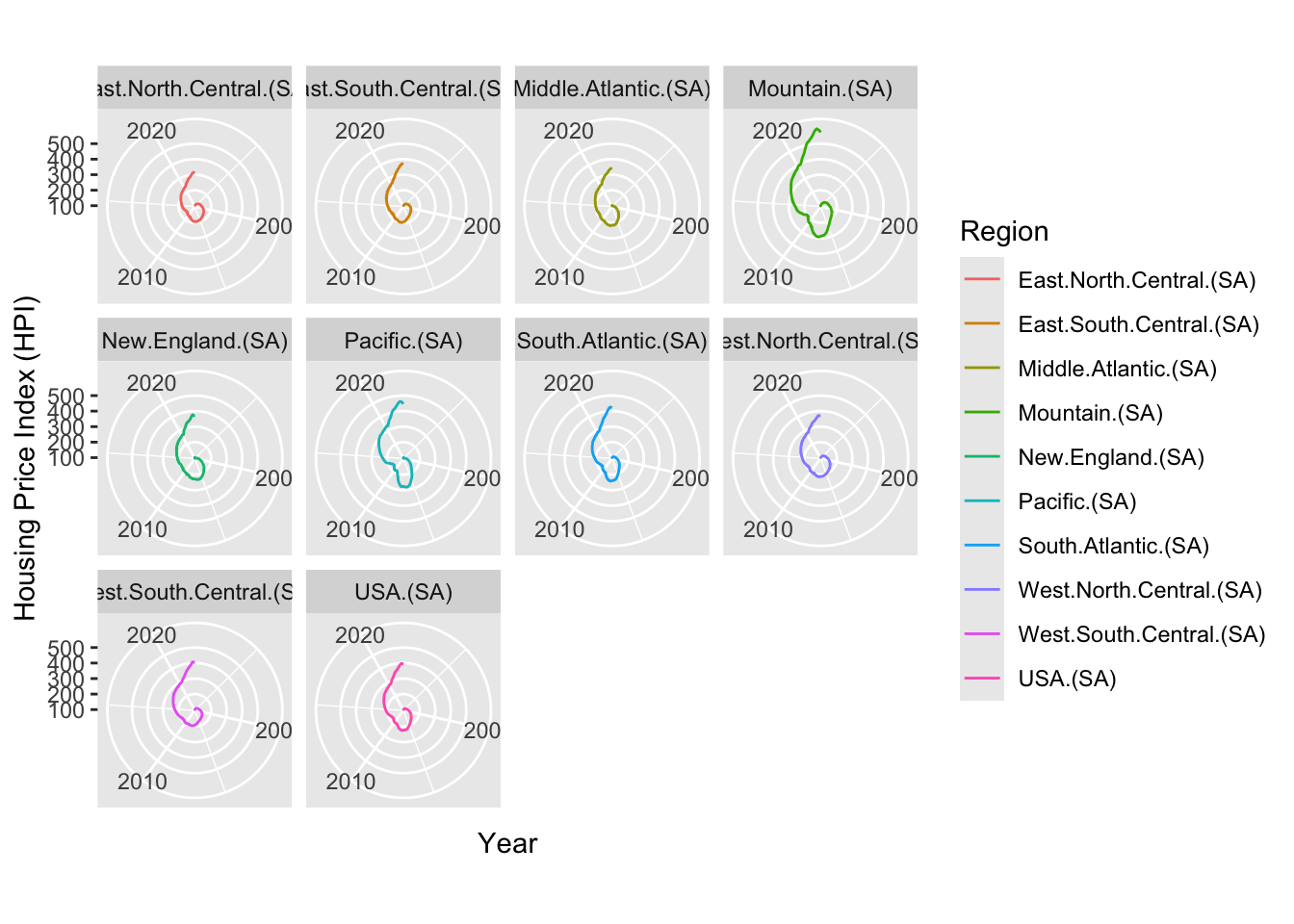

# All sa data polar plot
ggplot(sa_hpi, aes(x = Month,
                   y = value,
                   group = variable, color = variable)) +
  geom_line() +
  coord_polar() +
  xlab("Year") + ylab("Housing Price Index (HPI)") +
  labs(color = "Region") +
  facet_wrap(~variable)

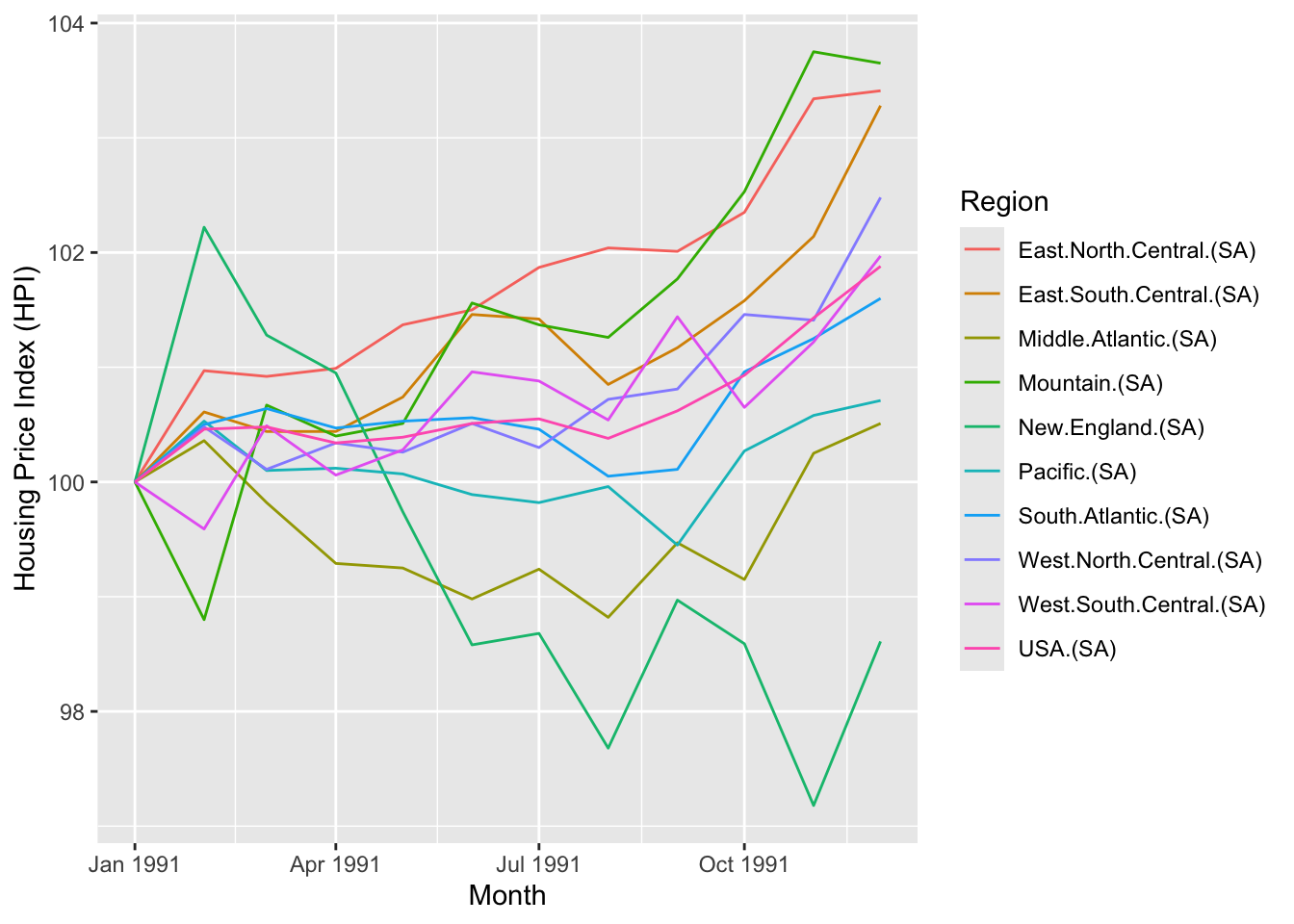

# Line plot by specific year
# Replace "1991" with input year
ggplot(sa_hpi %>% filter(grepl("1991", Month)),
       aes(x = Month, y = value,
        group = variable, color = variable)) +
  geom_line() +
  xlab("Month") + ylab("Housing Price Index (HPI)") +
  labs(color = "Region")

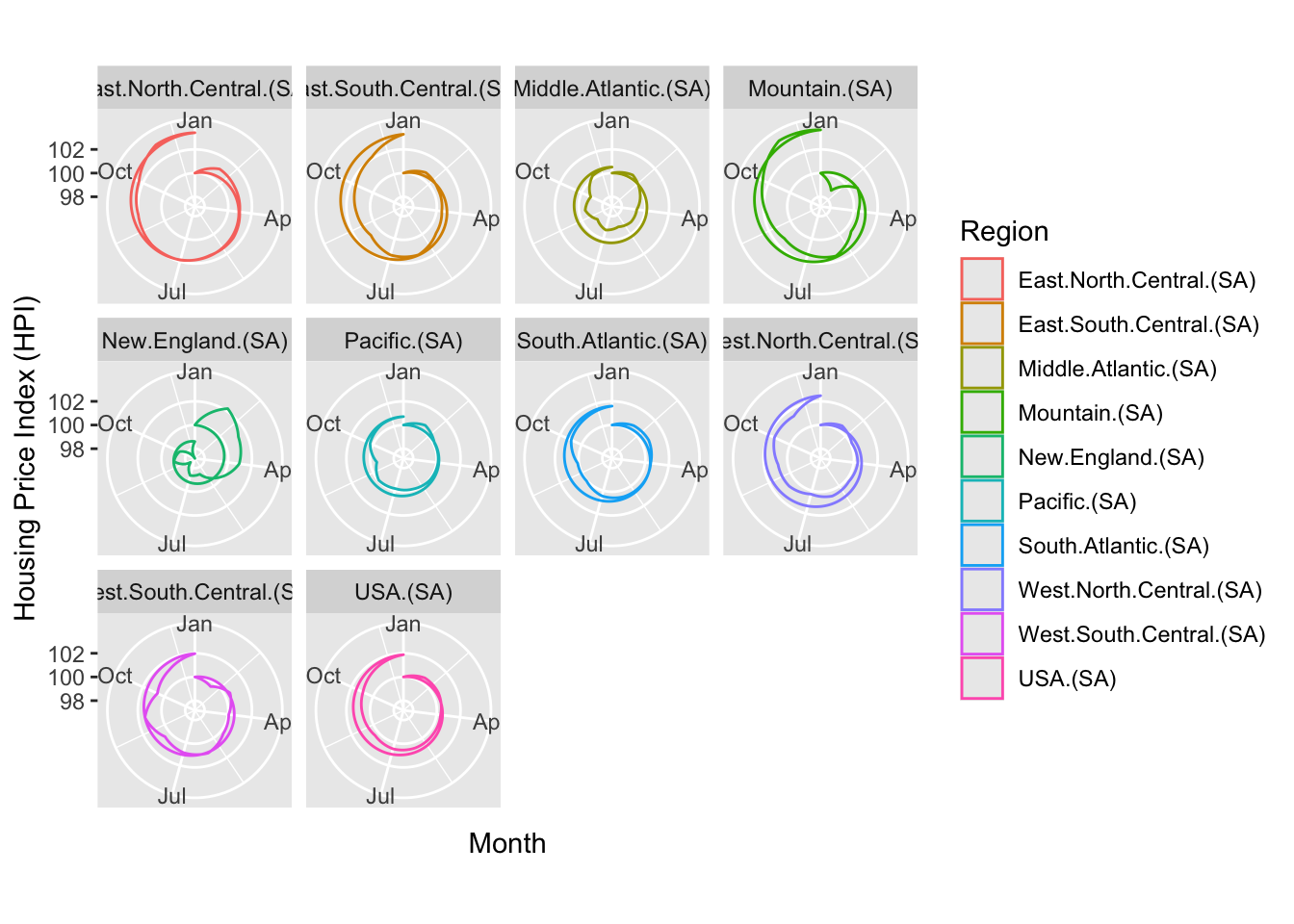

# Facet wrapped polar grids by specific year
# Replace "1991" with input year
ggplot(sa_hpi %>% filter(grepl("1991", Month)),
       aes(x = Month, y = value,
           group = variable, color = variable)) +
  geom_polygon(fill = NA) +
  coord_polar() +
  facet_wrap(~variable) +
  xlab("Month") + ylab("Housing Price Index (HPI)") +
  labs(color = "Region")

0.3 Code used to build Shiny App

library(tidyverse)
library(shiny)
library(openxlsx)
library(reshape2)

# Loading & wrangling data

hpi <- read.xlsx(xlsxFile = "https://github.com/aldenfelix/aldenfelix.github.io/raw/main/Data/HPI_PO_monthly_hist.xlsx",
                 startRow = 4,
                 detectDates = TRUE)

# Select seasonally adjusted variables
# NOTE: TO INCLUDE PARENTHESES IN SEARCH USE \\ AS SEEN BELOW
sa_vars <- hpi %>%
  select(grep("\\(SA\\)|Month", colnames(hpi)))

# Turn data from wide to long format for time series using reshape2 library
sa_hpi <- melt(sa_vars, id.vars = "Month")



# Define UI for app ----
ui <- fluidPage(

  # App title ----
  titlePanel("Federal Housing Finance Agency Housing Price Index (FHFA HPI)"),

  # Sidebar layout with input and output definitions ----
  sidebarLayout(

    # Sidebar panel for inputs ----
    sidebarPanel(

      # Input: Buttons for type of plot
      radioButtons(inputId = "plotbtn",
                   label = "Choose what kind of plot to create",
                   choices = c("Line plot for a specific year" = "lineyear",
                               "Polar plot for a specific year" = "polar",
                               "Line plot of all data" = "line")),

      # Input: Slider for year, conditional on plots where time can be specified
      conditionalPanel(
        condition = "input.plotbtn == 'lineyear' || input.plotbtn == 'polar'",
        sliderInput(inputId = "year",
                  label = "Choose a year to view:",
                  min = 1991,
                  max = 2022,
                  value = 1991)),

      # Input: Slider for number of observations
      sliderInput(inputId = "obs",
                  label = "Number of observations:",
                  min = 1,
                  max = 48,
                  value = 24),
    ),

    # Main panel for displaying outputs ----
    mainPanel(

      # Output: Panel that displays line plot
      conditionalPanel(
        condition = "input.plotbtn == 'lineyear'",
        plotOutput(width = 1000, height = 1000, "lineplotyear")
      ),

      # Output: Panel that displays polar plot
      conditionalPanel(
        condition = "input.plotbtn == 'polar'",
        plotOutput(width = 1500, height = 1500, "polarplot")
      ),

      # Output: Panel that displays line plot of all data
      conditionalPanel(
        condition = "input.plotbtn == 'line'",
        plotOutput(width = 1000, height = 1000, "lineplot")
      ),

      # Output: Verbatim text for data summary ----
      verbatimTextOutput("summary"),

      # Output: HTML table with requested number of observations ----
      tableOutput("obs")

      # Output: Formatted text for caption ----
      # h3(textOutput("caption", container = span)),
    )
  )
)

# Define server logic to summarize and view selected dataset ----
server <- function(input, output) {

  output$summary <- renderPrint({
    summary(hpi)
  })

  # Show the first "n" observations ----
  # The output$view depends on both the databaseInput reactive
  # expression and input$obs, so it will be re-executed whenever
  # input$dataset or input$obs is changed
  output$obs <- renderTable({
    hpi$Month <- as.character(as.Date(hpi$Month, "%Y-%m-%d"))
    head(hpi, n = input$obs)
  })

  output$lineplotyear <- renderPlot({
    ggplot(sa_hpi %>% filter(grepl(as.character(input$year), Month)),
           aes(x = Month, y = value,
           group = variable, color = variable)) +
      geom_line(size = 1.1) +
      xlab("Month") + ylab("Housing Price Index (HPI)") +
      labs(color = "Region") +
      scale_x_date(breaks = "month", labels = scales::label_date("%b")) +
      theme(text = element_text(size = 20))
  })

  output$polarplot <- renderPlot({
    ggplot(sa_hpi %>% filter(grepl(as.character(input$year), Month)),
           aes(x = Month, y = value,
               group = variable, color = variable)) +
      geom_polygon(fill = NA, size = 1.1) +
      coord_polar() +
      facet_wrap(~variable) +
      xlab("Month") + ylab("Housing Price Index (HPI)") +
      labs(color = "Region") +
      scale_x_date(breaks = "month", labels = scales::label_date("%b")) +
      theme(text = element_text(size = 20))
  })

  output$lineplot <- renderPlot({
    ggplot(sa_hpi, aes(x = Month, y = value,
                       group = variable,
                       color = variable)) +
      xlab("Year") + ylab("Housing Price Index (HPI)") +
      labs(color = "Region") +
      geom_line(size = 1.05) +
      xlab("Year") + ylab("Housing Price Index (HPI)") +
      labs(color = "Region") +
      theme(text = element_text(size = 20))
  })
}

# Create Shiny app ----
shinyApp(ui, server)
